Enable Windows 8 To Respond Ping Request | Configuring Windows 8 Firewall

By default Windows 8 comes with enabled Windows firewall which will not respond to ping requests from other networked devices. Even though you can access network shares from your Win 8 computer, but still the host computer will not respond to ping request Windows 8 will only Return ‘Request Timed Out’ message as you can see in the below screen shot.

Here is the simple solution to enable ping reply or response in Windows 8 by modifying ICMP Echo rule without completely disabling the Windows firewall.

If you turn off firewall in Windows 8, yes it will respond to ping requests, but that is not the professional way.

Warning! Disabling the firewall completely for ping request will put the computer in high network threat.

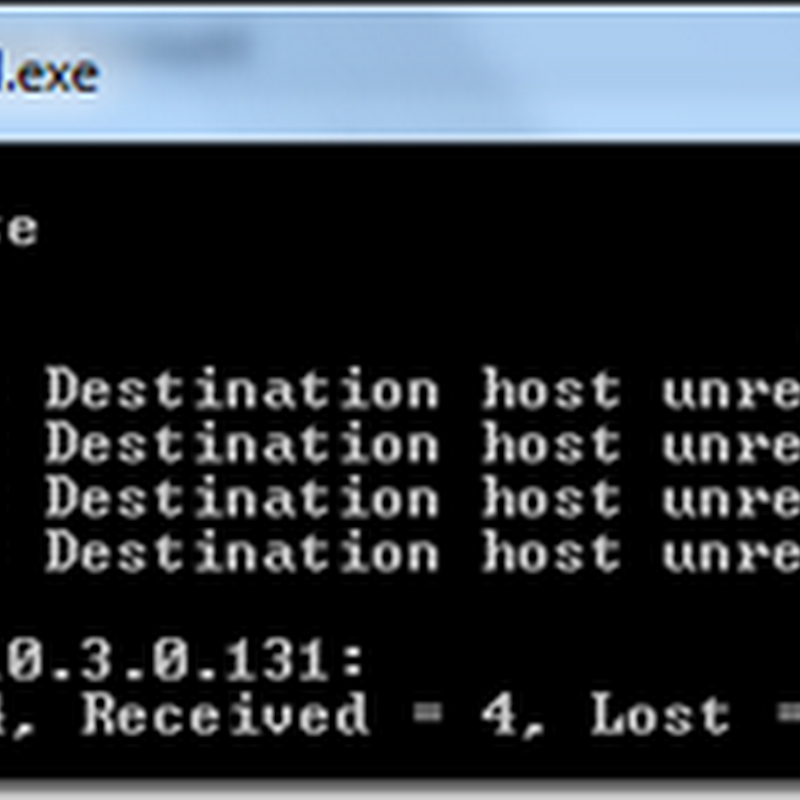

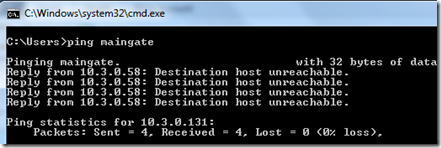

Screenshot explaining what will happen if you ping a Windows 8 Machine that is connected to a network. Even when it is connected, ping result will fail as either Request Times Out Or Destination host unreachable.

Enable Windows 8 Respond To Ping Request  Configuring Windows 8 Firewall

How to Enable Only ICMP Echo Request which responds to ping command from other networked devices, follow the below steps.

1) Go to Control panel.

Enable Windows 8 Respond To Ping Request  Configuring Windows8 Firewall

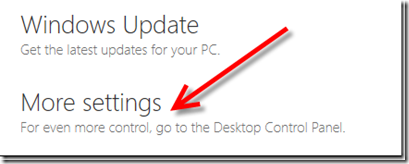

2) Click on More Settings option which is listed at last (This will bring the old style Control panel in Windows 8).

Enable Windows8 Respond To Ping Request  Configuring Windows 8 Firewall

3) Click on Windows Firewall icon. Here you can completely turn off the firewall, so ping reply will work but its not recommended and we are not going to do it.

Enable Windows 8 Respond Ping Request  Configuring Windows8 Firewall

Select Advanced settings to open more and advanced Windows firewall settings.

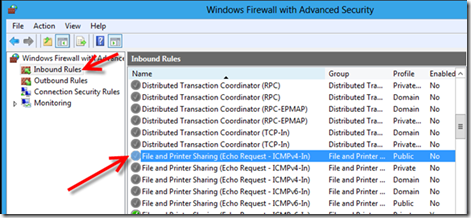

4) There is a pre made ICMP Echo rule available in Inbound Rules, we just need to enable that rule.

Enable Win 8 Respond To Ping Request  Configuring Windows8 Firewall

You must consider two facts while enabling the rule,

a) Network protocol type ( Is it IPv4 or IPv6)

b) Network location type ( Is it Private or Public or Domain network)

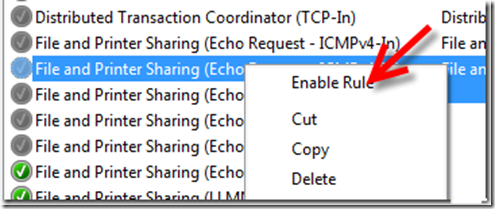

Find out the correct rule matching for your scenario and enable it by right clicking and select Enable Rule.

Enable Windows 8 Respond To Ping Request  Configuring Windows8_ Firewall

That’s it, we have just enabled the ping response or reply in Windows 8 without disabling the Windows firewall.  Later disabling (Right Click and select Disable Rule) the same rule will prevent the Windows 8 computer to respond ping commands.

Warning! As we have already seen, You can make Windows 8 to respond to ping requests by disabling Firewall completely. However, that is not the professional way. As, disabling the firewall completely for ping request will put the computer in high network threat. Follow the above step-by-step instruction to Enable Windows 8 Respond To Ping Request by configuring Windows 8 Firewall.
